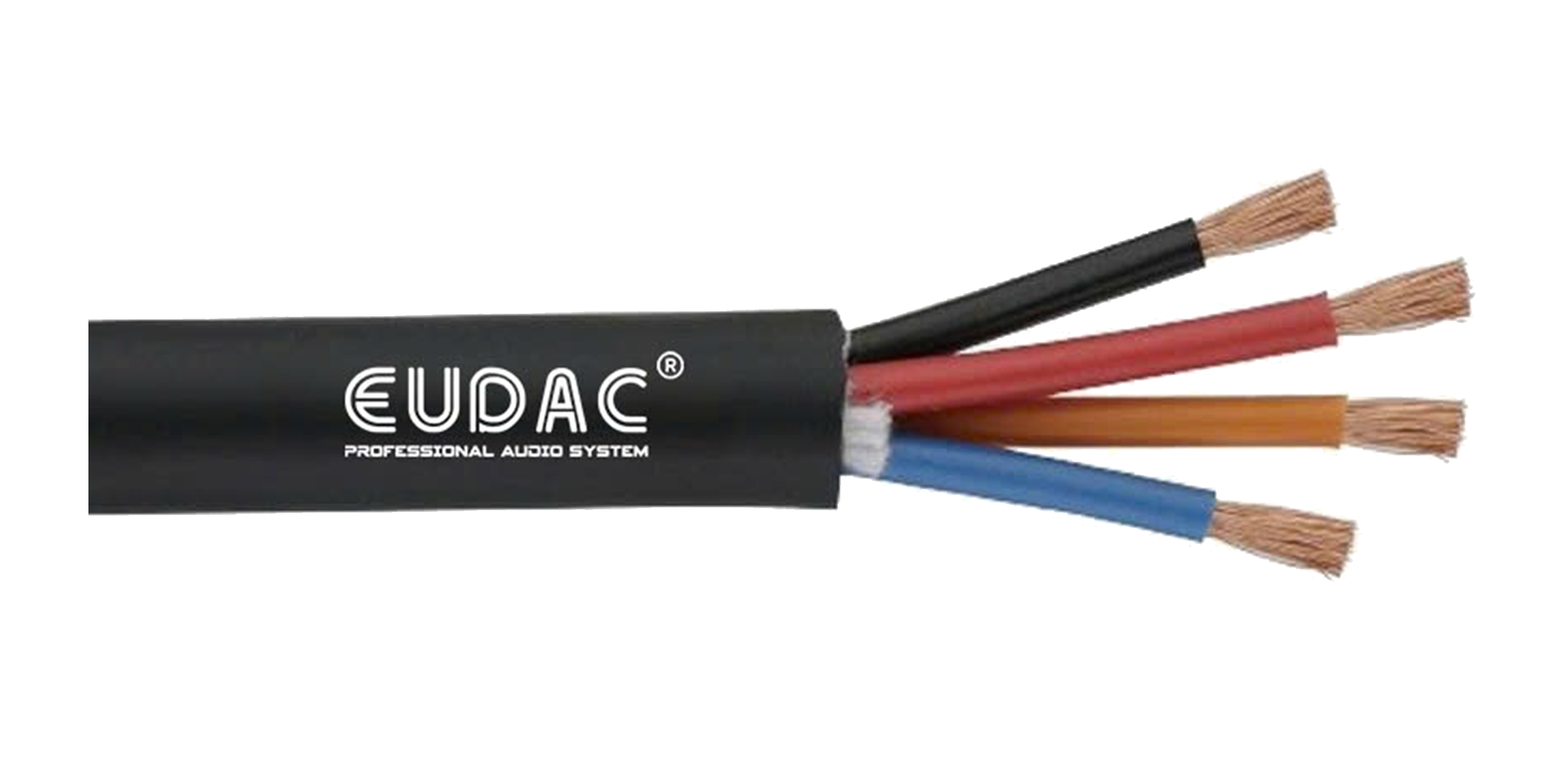

Speaker Cable EUDAC SC-425M
- Brand:
- SKU: EUDAC-SC-425M
- Guarantee: 12 Month
- Unit: Meter
- Status: Available
Specifications
Specifications
- Core construction: 4 twisted cores, each turn 100 +/- 12mm, left-handed
- Conductor cross-section: 2.5 mm2 / 13 AWG
- Conductor composition: 100% soft annealed bare copper
- Conductor insulation: PVC (Polyvinyl chloride)
- Diameter: 3.2 mm +/- 0.1 mm
- Conductor color: Red, White, Blue, Grey
- Filler: Cotton wire
- Core construction: 4 twisted cores, each turn 100 +/- 12mm, left-handed
- Sheath material:
- PC with limited components: Flame-retardant PVC
- Cadmium: < 5 PPM (‘Cadmium free’)
- Lead: < 50 PPM / Chromium: Not contained
- Mercury: < 2 PPM / Hardness: 65 Shore-A
- Sheath color: Black
- Sheath surface: Non-stick, mild odor
- Overall diameter: Ø 12.5 mm, tolerance: +/- 0.2 mm
- Operating temperature: Mobile -5°C to +70°C / Fixed: -30°C to +80°C
- DC resistance of conductor: ≤ 5.0 mOhm/m – 20°C
- Insulation resistance: > 1 GOhm/Km – 20°C, 500 VDC
- Capacitance between conductors: ≤ 200 pF/m – 1 KHz
- Test voltage: 1500V eff – 50 Hz, 1 minute
