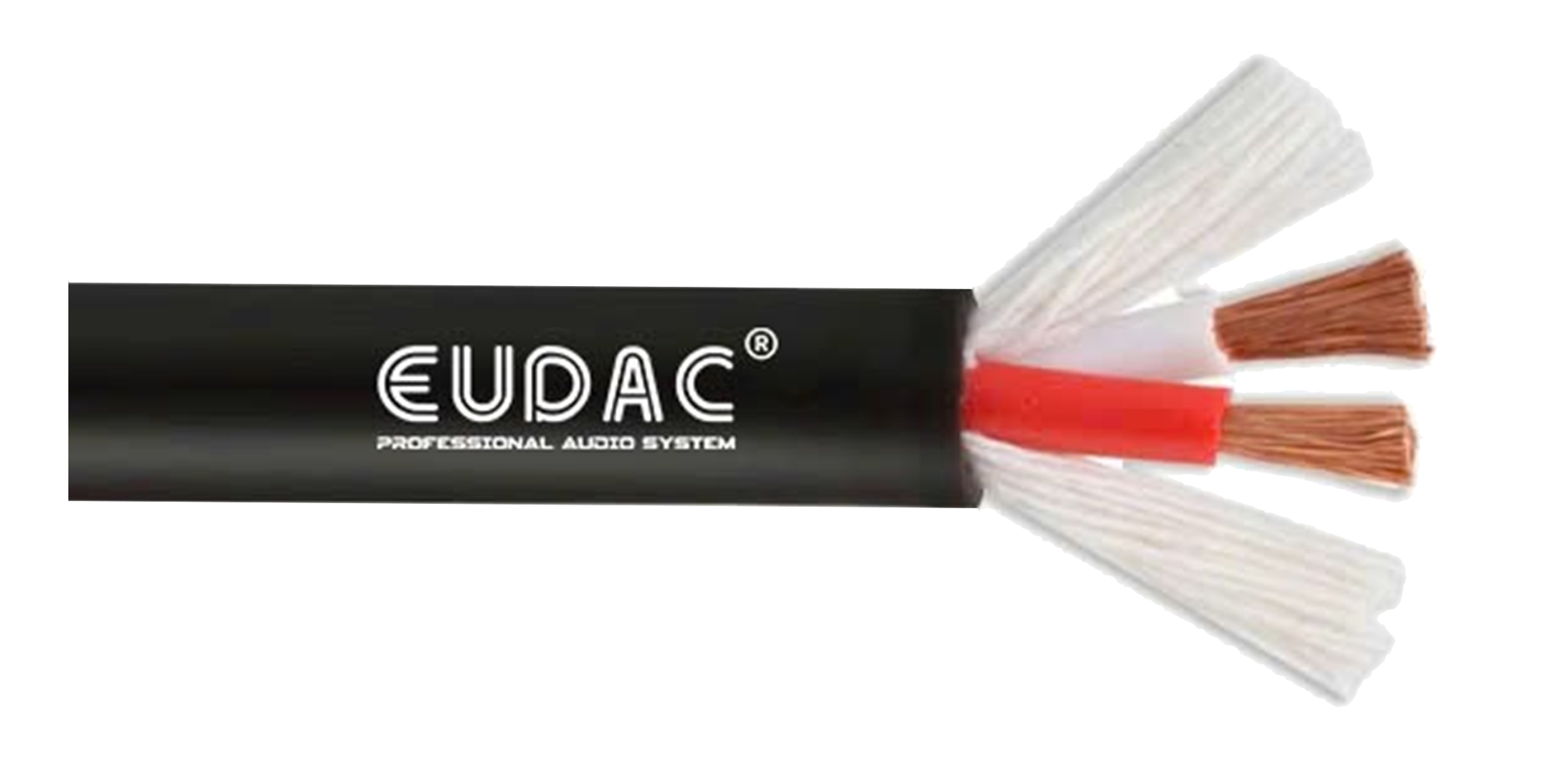

Speaker Cable EUDAC SC-215M
- Brand:
- SKU: EUDAC-SC-215M
- Guarantee: 12 Month
- Unit: Meter
- Status: Available
Specifications
Specifications
- Core Construction: 2 twisted cores, 100 ± 12 mm lay length, left-hand twist
- Conductor Cross-Section: 1.5 mm² / 15 AWG
- Conductor Material: 100% annealed bare copper
- Conductor Insulation: PVC (Polyvinyl Chloride)
- Conductor Diameter: 2.8 ± 0.1 mm
- Conductor Colors: Red, White
- Filler: Cotton yarn
- Core Construction: 4 twisted cores, 100 ± 12 mm lay length, left-hand twist
- Jacket Material: PC with restricted substances; flame-retardant PVC
- Cadmium: <5 ppm (“Cadmium-Free”)
- Lead: <50 ppm
- Chromium: Not contained
- Mercury: <2 ppm
- Hardness: 65 Shore A
- Jacket Color: Black
- Jacket Surface: Non-Sticky, Low Odor
- Overall Diameter: Ø8.0 mm, tolerance ±0.2 mm
- Operating Temperature: Flexible: -5°C to +70°C / Fixed: -30°C to +80°C
- DC Conductor Resistance: ≤5.0 mΩ/m at 20°C
- Insulation Resistance: >1 GΩ/km at 20°C, 500 VDC
- Capacitance Between Conductors: ≤200 pF/m at 1 kHz
- Test Voltage: 1500 V RMS at 50 Hz for 1 minute
